metric-gate

A Prometheus scrape proxy that can filter and aggregate metrics at the source, reducing cardinality before ingestion.

graph LR
prometheus --> metric-gate
subgraph Pod
  metric-gate -. localhost .-> target
end

Loading

• Filtering is done using metric_relabel_configs.
• Aggregation is done via labeldrop leading to sum() without(label) like result. Note, that it works for Counters and Histograms, but has no sense for Gauges.

Could be used in three modes:

• sidecar, as a container in the same pod with a single target (as above)
• dns, returns aggregated result of multiple targets
• subset metrics to separate endpoints

Why?

Consider the following example:

ingress-nginx exposes 6 Histograms (of 12 buckets each) for each Ingress object. Now suppose you have k8s cluster with 1k Ingresses, each having 10 Paths defined:

Cardinality: 1000 ingresses * 6 histogram * 12 buckets * 10 path = 720k metrics

The resulting size of http response on /metrics endpoint is 276Mb. Which is being pulled by Prometheus every scrape_interval (default 15s) leading to constant ~40Mbit/s traffic (compressed) on each replica of ingress-nginx Pod.

Sure, metrics could be filtered at Prometheus side in metric_relabel_configs, but it will not reduce the amount of data being pulled from target. And then aggregation could be done via recording rules, but one cannot drop already ingested source data afterward.

sidecar mode

In this case, metric-gate could be used as a sidecar container, which would get original metrics via fast localhost connection, apply filtering and aggregation, and then return smaller response to Prometheus.

Let's reduce cardinality 10x by removing path label from ingress-nginx metrics above:

# before
metric{ingress="test", path="/api", ...} 5
metric{ingress="test", path="/ui", ...} 2

# after
metric{ingress="test", ...} 7

That could be done via dropping the label from all the metrics:

metric_relabel_configs:
- action: labeldrop
  regex: path

Or, you can target specific metrics by setting label to empty value:

metric_relabel_configs:
- action: replace
  source_labels: [ingress, __name__]
  regex: test;metric
  target_label: path
  replacement: "" # drops the `path` label

Usual filtering is also works.
Example of dropping all histograms except when status="2xx":

metric_relabel_configs:
- action: drop
  source_labels: [status, __name__]
  regex: "[^2]xx;nginx_ingress_controller_.*_bucket"

dns mode

When you prefix --upstream scheme with dns+ (as in thanos) and set it to dns name which resolves to multiple IPs, metric-gate will return aggregated metrics from all the targets.

graph LR
prometheus --> metric-gate
metric-gate --> dns
metric-gate -.-> deployment-pod-a & deployment-pod-b
subgraph Deployment
  deployment-pod-a
  deployment-pod-b
end

Loading

In k8s you can use headless Service to expose all the Pods IPs for some LabelSelector:

apiVersion: v1
kind: Service
metadata:
  name: ingress-nginx-controller-metrics
spec:
  clusterIP: None # headless Service
  selector:
    app.kubernetes.io/name: ingress-nginx
  publishNotReadyAddresses: true # try to collect metrics from non-Ready Pods too

When request comes to /metrics endpoint of metric-gate, it (re)resolves --upstream dns to a set of IPs and fan out to all of them at the same time, so the result is returned with the speed of the slowest target. Timeout of those subrequests is configurable via --scrape-timeout flag. With it, you can choose to fail the whole scrape if one of the targets is slow (--scrape-timeout > prometheus scrape_timeout) , or return partial response with only metrics from the ones that are available in time.

Continuing with our example above, this way you can reduce cardinality to the number of ingress-nginx-controller replicas. To do that, disable direct scrape of each replica Pod by Prometheus, and scrape only metric-gate instead.

Problems with this approach:

• In this mode /source endpoint returns single random upstream IP output.

• There is "automatic availability monitoring" based on up metric in Prometheus, which can detect when specific Target is down. In this case it only provides status of metric-gate itself, not the each ingress-nginx-controller replica.

• All the metrics are aggregated from all the replicas, so information like process_start_time_seconds which only makes sense for single replica is not available anymore.

• "Counter resets" detection is broken in the case of aggregation. Consider this example:

  	t1	t2	t3
  metric{instance="a"}	10	10	10
  metric{instance="b"}	20	0	0
  sum(rate(metric))	0	0	0
  metric aggregated	30	10	10
  rate(metric)	0	10/15s	0

  There are two pods (a and b) serving metric counter. At point in time t2 we restart pod b. This works fine in prometheus, see Rate then sum, as first rate is calculated and it sees drop of counter to 0. This leads to correct 0 result. Now we aggregate those two metrics into one (dropping instance label), and at point in time t2 the value is 10. For rate that means that Counter reset happened (value of Counter is less than previous one) and now the value is 10, which reads as "in a scrape interval (15s) it dropped to 0 and then increased to 10", so rate=10/15s=0.67/s which is incorrect.

Some of these issues could be solved by subset mode, read below.

subset mode

This allows splitting single origin scrape output into multiple endpoints, each with a different set of metrics.

Take again our Ingress example above. Docs assign metrics to the following groups:

• Request metrics, this is the main number of series on each replica (~720k). We want to aggregate them across all the replicas.
• Nginx process metrics and Controller metrics, 68 metrics in total. These only have sense for each specific replica.

To aggregate the first and directly scrape the second, we can stack sidecar and dns modes together:

graph LR
    prometheus --> metric-gate
    metric-gate --> dns
    prometheus --> ma & mb
    metric-gate -.-> ma & mb
    subgraph Deployment
        pod-a
        pod-b
    end
    subgraph pod-b
        mb["metric-gate-b"] -.localhost.-> tb["target-b"]
    end
    subgraph pod-a
        ma["metric-gate-a"] -.localhost.-> ta["target-a"]
    end

Loading

Let's take a look at the metric-gate-a configuration in this case:

  containers:
    - name: metric-gate
      image: sepa/metric-gate
      args:
        - --port=8079
        - |
          --relabel=
            metric_relabel_configs:
            - action: keep # drop Request metrics
              source_labels: [__name__]
              regex: (go|nginx_ingress_controller_nginx_process|process)_.*
            requests:
            - action: drop # keep only Request metrics
              source_labels: [__name__]
              regex: (go|nginx_ingress_controller_nginx_process|process)_.*
            - action: labeldrop
              regex: path # aggregate path

This way Prometheus scrapes usual /metrics endpoint, which is configured by --relabel, and has only per-process metrics. While answering to this request, metric-gate uses the same upstream response to fill out all the configured subsets. In this case only one subset named "requests" is configured, which results then could be accessed at /metrics/requests endpoint. Now downstream aggregating metric-gate could use it to get only Request metrics from each replica.

Note that data on /metrics/requests is available immediately, and accessing it does not generate new subrequest to the upstream. That is done to reduce both cpu/network load to upstream. But it also means, the data could be stale (it only refreshes on /metrics scrapes). To prevent time skew on graphs, timestamp of upstream request is added to all the metrics returned by subset endpoints (if they don't have it yet)

The diagram above is just one of the examples. We can drop metric-gate sidecars, and scrape metrics from Targets directly by Prometheus and aggregating metric-gate (each filtering own subset of metrics in metric_relabel_configs). That would lead to two scrapes per-scrape-interval, and twice as much cpu/network load on each replica just from a metrics collection. Sidecars are shown here to demonstrate that we can aggregate pre-filtered results, while having a single scrape for Targets.

Usage

Available as a docker image:

$ docker run sepa/metric-gate -h
Usage of /metric-gate:
  -f, --file string               Analyze file for metrics and label cardinality and exit
      --log-level string          Log level (info, debug) (default "info")
  -p, --port int                  Port to serve aggregated metrics on (default 8080)
      --relabel string            Contents of yaml file with metric_relabel_configs
      --relabel-file string       Path to yaml file with metric_relabel_configs (mutually exclusive)
  -t, --scrape-timeout duration   Timeout for upstream requests (default 15s)
  -H, --upstream string           Source URL to get metrics from. The scheme may be prefixed with 'dns+' to resolve and aggregate multiple targets (default "http://localhost:10254/metrics")
  -v, --version                   Show version and exit

Run it near your target, and set --upstream to correct port.

metric_relabel_configs could be provided via 2 methods:

• via configMap and --relabel-file flag with a full path to the file
• via --relabel flag with yaml contents like so:

  # ... k8s pod spec
  containers:
  - name: metric-gate
    image: sepa/metric-gate
    args:
      - --upstream=localhost:8081/metrics
      - |
        --relabel=
          metric_relabel_configs:
          - action: labeldrop
            regex: path
  # ...

Any additional keys (to metric_relabel_configs) defined in --relabel= would be used as a name to access its filtered metrics via /metrics/<name> endpoint.

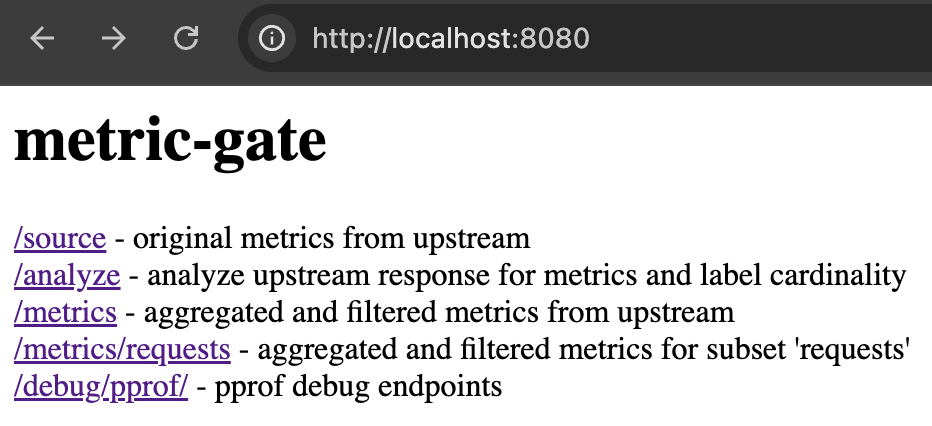

Available endpoints:

To find metrics to aggregate, you can use /analyze endpoint:

109632 nginx_ingress_controller_response_duration_seconds_bucket
  1313 ingress
  656 service
  334 namespace
  15 path
  12 le
  7 method
  5 status [4xx, 2xx, 3xx, 5xx, 1xx]

...

It shows the number of series for each metric, and then the number of values for each label.

You can also run it as a cli-tool to analyze a file with metrics:

docker run --rm -v /path/to/metrics.txt:/metrics.txt sepa/metric-gate --file=/metrics.txt

Note about parsing

From performance perspective, metric-gate hot path is parsing prometheus text format, do relabel, and then render it back to text format. Relabel and rendering implementations from prometheus libs look fine, but parsing seems as something that could be improved. Here is a go bench for different parsing implementations:

$ make bench
goos: darwin
goarch: arm64
pkg: github.com/sepich/metric-gate
BenchmarkParseLine0-16      232239      5100 ns/op      9184 B/op     110 allocs/op
BenchmarkParseLine1-16      983380      1246 ns/op      3120 B/op      11 allocs/op
BenchmarkParseLine-16      2222438       539.5 ns/op    1456 B/op       8 allocs/op
BenchmarkParseLine2-16     2635765       458.3 ns/op    1408 B/op       6 allocs/op
BenchmarkParseLine3-16     1817930       659.9 ns/op    1832 B/op      26 allocs/op
BenchmarkParseLine4-16     2623164       453.5 ns/op    1408 B/op       6 allocs/op

where:

• ParseLine0 uses prometheus expfmt.TextToMetricFamilies
• ParseLine1 uses prometheus textparse.PromParser
• ParseLine previous custom implementation
• ParseLine2 AI improved version of it for speed (to the state of being unreadable)
• ParseLine3 attempt to use raw []byte instead of string to skip utf8, but Label conversion to string is more expensive
• ParseLine4 attempt to use state-machine with only pointers to a slice (used now)

So the custom implementation is >2x faster than using prometheus lib. And actual algorithm does not matter much, the number of mem allocations per line is more important.

Alternatives

• vmagent can do aggregation to new metric names and then send remote-write to Prometheus.
  How to relabel metrics to the original form? Possibly use vmserver instead of vmagent, to scrape /federate endpoint instead of remote-write, to allow for relabeling in scrape config on prometheus side
• otelcol possible, but needs relabeling on the prometheus side to have metrics with original names
• grafana alloy same as otelcol
• exporter_aggregator scape metrics from a list of Prometheus exporter endpoints and aggregate the values of any metrics with the same name and label/s. Same as dns mode, but with static list of upstreams
• telegraf and vector cannot aggregate metrics like sum() without(label), it is more like downsampling
