Unity Test Protocol

Automated Testing at Unity includes many components. We want all the components to exchange test execution data using a simple, well defined language - Unity Test Protocol or just UTP.

Having UTP would help us to:

• detect errors based on well-defined rules;
• build better test reporting;
• make more analysis tools for text execution data;
• integrate with existing analysis tools (e.g., with chrome://tracing).

Basic principles

Each UTP message:

• is represented in JSON format;
• has a unique type. E.g. ArtifactPublish, TestStatus, TestSession, etc;
• has a timestamp in millisecond since epoch in UTC;
• has a phase (see Message types below);
• has an array of errors (empty by default);
• and if written to log with non-UTP messages, should be prefixed by ##utp:.

Message types

There are two fundamental types of UTP messages - Instant and Begin-End messages.

Instant messages

Instant messages are used to represent 'instant' events, which do not have any meaningful duration. For example, ArtifactPublish message:

{
  "type": "ArtifactPublish",
  "phase": "Immediate",
  ...
  "destination": "C:\\buildslave\\unity\\build\\build\\ReportedArtifacts\\TestRunnerLog.txt"
}

The syntax phase=Immediate is used to mark instant messages.

Begin-end messages

Begin-End UTP messages is used to represent synchronous actions, defined by a phase=Begin, phase=End pair. The Begin Message must come before the corresponding End Message. You can nest Begin-End messages. Instant messages can also be nested into Begin-End messages.

For example:

{
  "type": "TestSession",
  "time": 1519344091036,
  "phase": "Begin",
  "version": 2,
  "processId": 75305,
  "errors": [],
  "minimalCommandLine": [
    "--suite=graphics",
    "--platform=StandaloneOSX",
    "--configuration=glcore",
    "-owner=yan yan@unity3d.com"
  ]
}

{
  "type": "ArtifactPublish",
  "time": 1519344091044,
  "phase": "Immediate",
  "version": 2,
  "processId": 75305,
  "errors": [],
  "destination": "/Users/builduser/buildslave/unity/build/build/ReportedArtifacts/TestRunnerLog.txt"
}

{
  "type": "Action",
  "time": 1519344092749,
  "phase": "Begin",
  "version": 2,
  "processId": 75305,
  "errors": [],
  "name": "projectBuild",
  "description": "Building project for StandaloneOSX_glcore_Gamma"
}

{
  "type": "Action",
  "time": 1519349381543,
  "phase": "End",
  "version": 2,
  "processId": 75305,
  "errors": [],
  "name": "projectBuild",
  "description": "Building project for StandaloneOSX_glcore_Gamma",
  "duration": 5288792
}
...

{
  "type": "TestSession",
  "time": 1519350193061,
  "phase": "End",
  "version": 2,
  "processId": 75305,
  "errors": []
}

In this example, TestSession is a top level Begin-End message. It has one nested instant message - ArtifactPublish - and one nested Begin-End message - of type Action. Using this structure, we can build a test report like this:

TestSession
    ArtifactPublish: TestRunnerLog.txt
    Building project for StandaloneOSX_glcore_Gamma 1:46

In practice, test execution structure is complex and includes more message types. But still, nested messages define a tree structure, which represents a hierarchy of actions in a test execution.

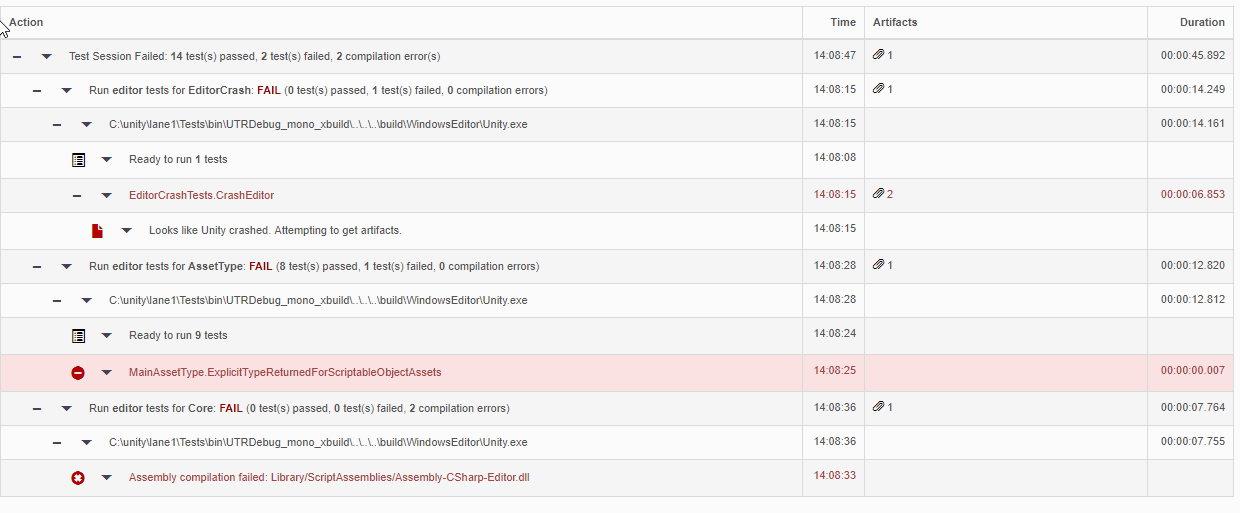

One way we can use it is to build a hierarchical test report:

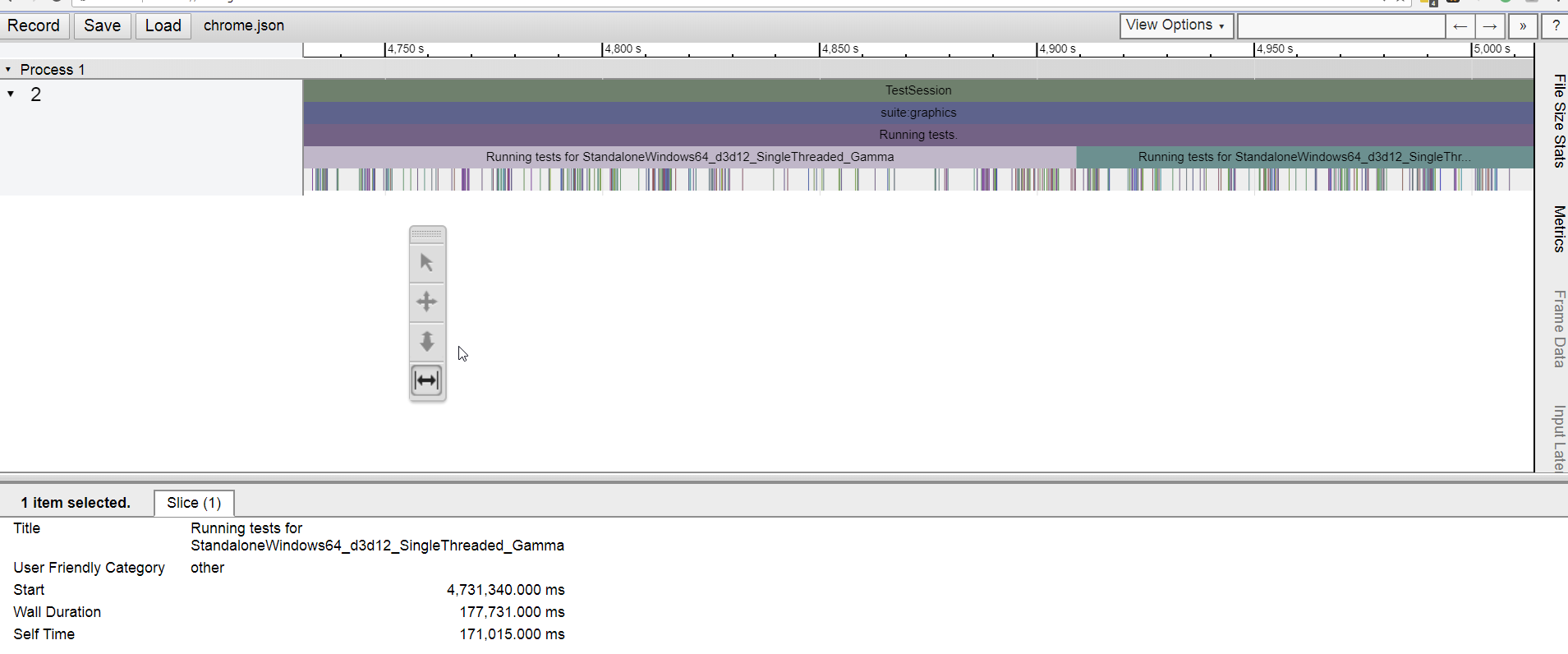

Or we can generate data compatible with other tools. E.g. with Google trace tool:

Merging begin-end messages

Begin and End messages can be merged. Once merged, the result message has phase=Complete. Merge rules are:

• if the begin or end message has a name field it must be the same in both messages; The only exception is a TerminateCurrent message (see below).
• errors of End Message are appended to errors of Begin message;
• if duration is not specified, it will be calculated as: endMessage.time - beginMessage.time

Sometimes, it is impossible to receive a proper End message. For example, if we ran editor tests, but the editor hangs and the latest message we get back is {"type":"TestStatus", "Phase":"Begin"...} we should be able to terminate the current action. For such cases, there is a special message TerminateCurrent. It always has phase=End. Any Begin message can be merged with TerminateCurrent. A TerminateCurrent message must come with an error explaining the reason for termination.

Learn more about message merge rules in Tests/Unity.TestProtocol.Tests/MergeMessageTests.cs

#Source code reference

Source code for Unity Test Protocol is located in Tests/Unity.TestProtocol Nice way to learn how it works is by looking into tests: Tests/Unity.TestProtocol.Tests

#Feedback

Please give any feedback in our Slack channel, #devs-test-platform.
