A logisim simulation of a basic computer with
- A bus that contains 6 registers (AR, TR, DR, AC, IR, PC)
- An 8 KB memory
- An arithmetic & logic unit (ALU) that supports addition, subtraction, incrementing, ANDing, ORing and XORing.

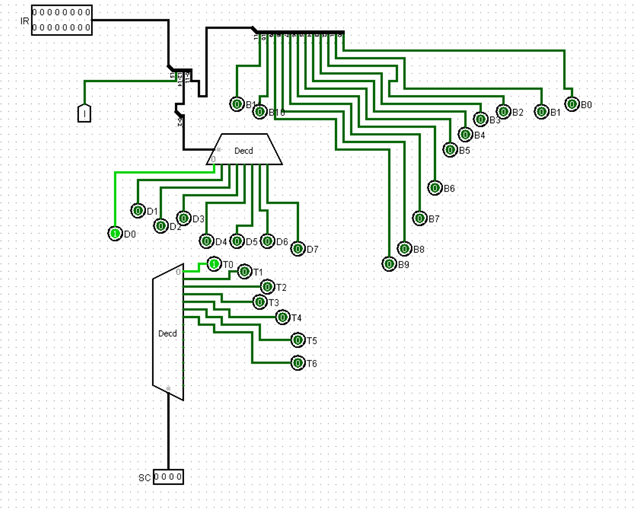

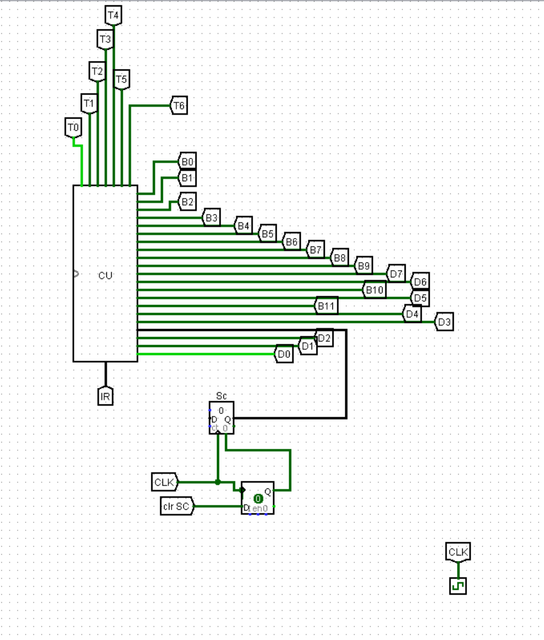

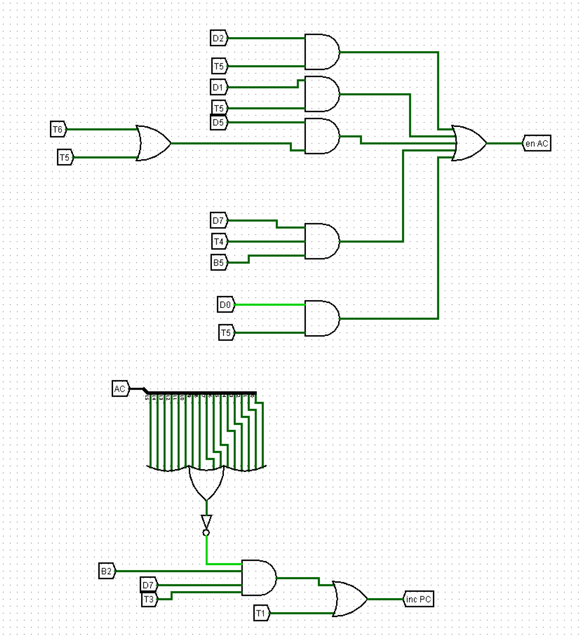

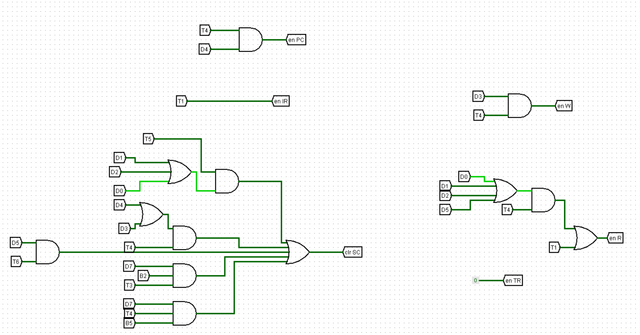

- A control unit (CU) that supports 8 instructions (AND, ADD, SUB, LDA, STA, INC, SZA)
