Kingman-Cloyne Antenna:
IP: 10.20.35.212 (Static)
Location: fire-escape outside the third floor nook
Webconfig: Port 80
SSH: Port 22
Cloyne-Kingman Antenna:
IP: 10.20.35.210 (Static)
Location: East Wing of Cloyne
Webconfig Port: 80
SSH: Port 22
They are Ubiquiti Powerbeam m5 300
See Cloyne's Network Reference for more information.
Also see the BSC Mesh Specification.
For information regarding hosting web services, see the Hosting Guide

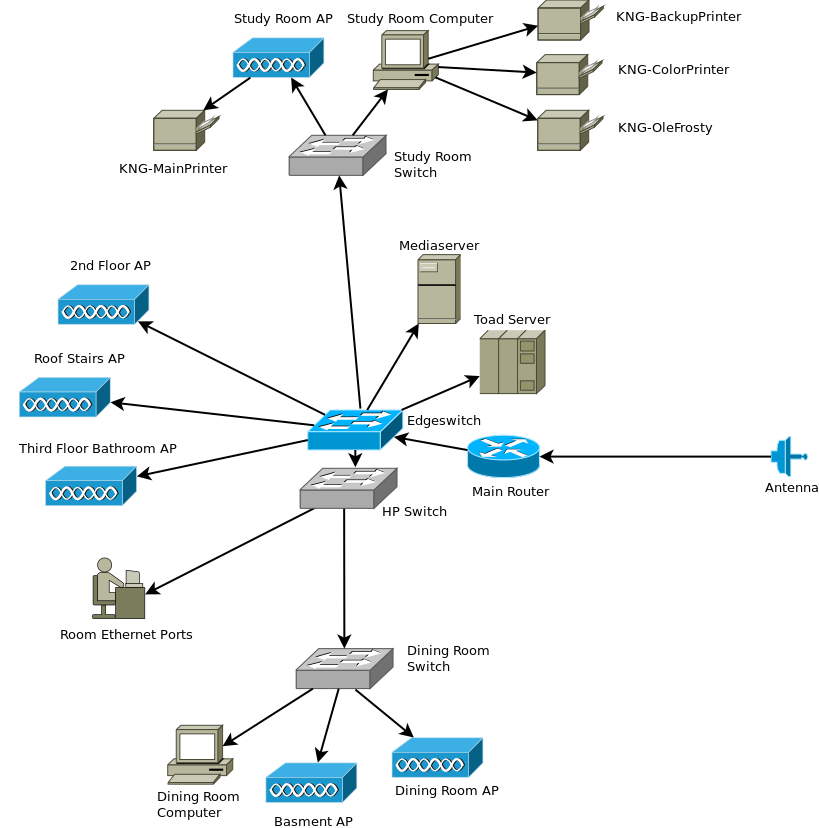

Main Router:
External IP: 10.20.33.44 (Static DHCP)
Internal IP: 10.20.96.1
Netmask: 255.255.255.0 (/24)
DHCP Client Range: 10.20.96.20-10.20.96.250
Webconfig Port: 80 (http)
Location: Network Closet
It is a Mikrotik RB2011UiAS-RM
Edge Switch
IP: 10.20.96.19 (Static)
Web Interface Port: 80
Speed: Gigabit
Location: Network Closet
It is an Edgemax Edgeswitch 24 Lite
Unmanaged Switches
| Make and Model | Location | Speed |
|---|---|---|
| HP V1910-48G | Net Closet | Gigabit |
| HP 190-8g? | Study Room | ? |
| Netgear ? | Dining Room | ? |
Unifi (x6)
| Room | Location | MAC Address | IP | Channel |
|---|---|---|---|---|
| Basement | Hallway | 80:2a:a8:c0:c7:4a | 10.20.96.10 (Static DHCP) | 11 |
| Dining Room | Top of Cabinets | 80:2a:a8:13:4b:bb | 10.20.96.6 (Static DHCP) | 6 |
| Study Room | By Toner and Ink | 80:2a:a8:13:4b:ed | 10.20.96.7 (Static DHCP) | 1 |
| 2nd Floor | Hallway | 80:2a:a8:13:4b:c5 | 10.20.96.8 (Static DHCP) | 11 |
| 3rd Floor | Roof Stairs | 80:2a:a8:c0:c5:3e | 10.20.96.11 (Static DHCP) | 6 |
| 3rd Floor | Outside Bathroom | 80:2a:a8:13:4a:19 | 10.20.96.9 (Static DHCP) | 1 |
They are Unifi UAP-AC-PRO
House Unifi Controller: https://toadserver.kingman:8080
See the Docker Guide for instructions on server management.
Toadserver:
IP: 10.20.96.2 (Static DHCP)
Operating System: Lubuntu 16.04
Services:
CUPS Printserver: 631
Unifi Controller: 8080
Samba
SSH: 22
Location: Network Closet
It is a Compaq Presario 061
Cups Print Server Documentation
Unifi Controller User Manual
Media Server:
IP: 10.20.96.3 (Static DHCP)
Operating System: Ubuntu 16.04
Services:
Apache2 Web Server: 80
Webmin: 10000
Rocket.Chat Server: 3000
Grafana: 9000
SSH: 22
Location: Network Closet
It is a custom built computer
Apache 2 Web Server Docs
Study Room Computer:
IP: 10.20.96.4 (Static DHCP)
Operating System: Windows 10 Professional
Services:
LPR Spooler
Windows Printer Sharing
Location: Study Room
It is a custom built computer
Dining Room Computer
IP: 10.20.96.5 (Static DHCP)
Operating System: Ubuntu 18.04
Services: Spotify Premium
Location: Dining Room
It is a custom built computer
Kingman Reverse Proxy
IP: 64.62.133.46 (static)
Fully Qualified Domain Name: kingman-hall.org
Operting System: HypriotOS
Services: Nginx Reverse Proxy
Location: Cloyne Server Room
It is a Raspberry Pi 1 B+
HypriotOS Site
Nginx Documentation
| Callsign | Make and Model | Wireless? | Color? | Double-Sided? | Scanning? |
|---|---|---|---|---|---|
| KNG-BackupPrinter | Brother HL2240 | No | No | No | No |
| KNG-ColorPrinter | HP Photosmart c3180 | No | Yes | No | Yes |
| KNG-OldFrosty | HP LaserJet Pro P1102w | Yes | No | No | No |
| KNG-MainPrinter | Brother MFC9340 | Yes | Yes | Yes | Yes |
