piNET

This is a guideline consisting of personal notes for the setup of a Raspberry Pi within a home network as a Network Enhancement Tool ("NET") with capabilities of

• an automatic adblocker (via piHole) that optionally shows its current status on a nifty TFT display attached to the Raspberry Pi (via PADD),
• an own Wireguard VPN server for remote access to the home network (via piVPN),
• an uptime and response tracker for websites and/or clients on the network (via Uptime Kuma),
• a local website to encrypt text via PGP (via Javascript PGP Encryption Service by Herbert Hanewinkel),
• a reverse proxy server to redirect specified domain requests to local IPs on specified ports (via Nginx),
• a device to encrypt all DNS requests for all clients on the network via HTTPS (via Cloudflared),
• and an automatic & recurring backup for your entire Raspberry Pi (via raspiBackup).

Needless to say, almost all of these applications/services can be installed on their own and none of them "requires" the other. However, hosting a local website (PGP Encryption service) obviously requires a web server (we use Nginx here, but it can be any other as well) and the installation of the DoH service (Cloudflared) only makes sense in conjunction with the previous installation of piHole in this specific guide.
Furthermore, raspiBackup can be used to back up the microSD of your Raspberry Pi to all kinds of hosts and/or cloud services. In my guide, however, I will only describe the backup configuration to a Synology NAS.

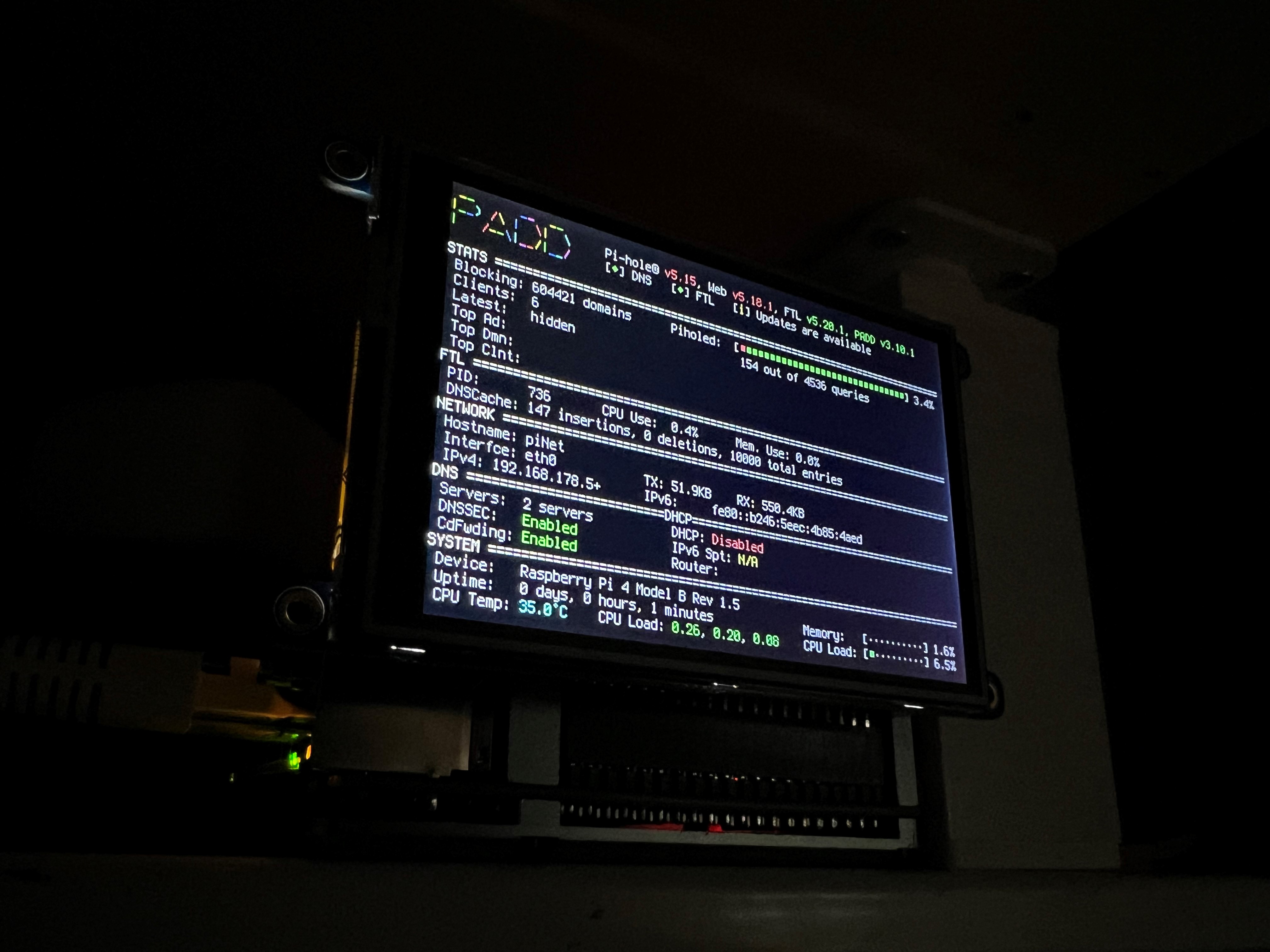

Finished piNET Device

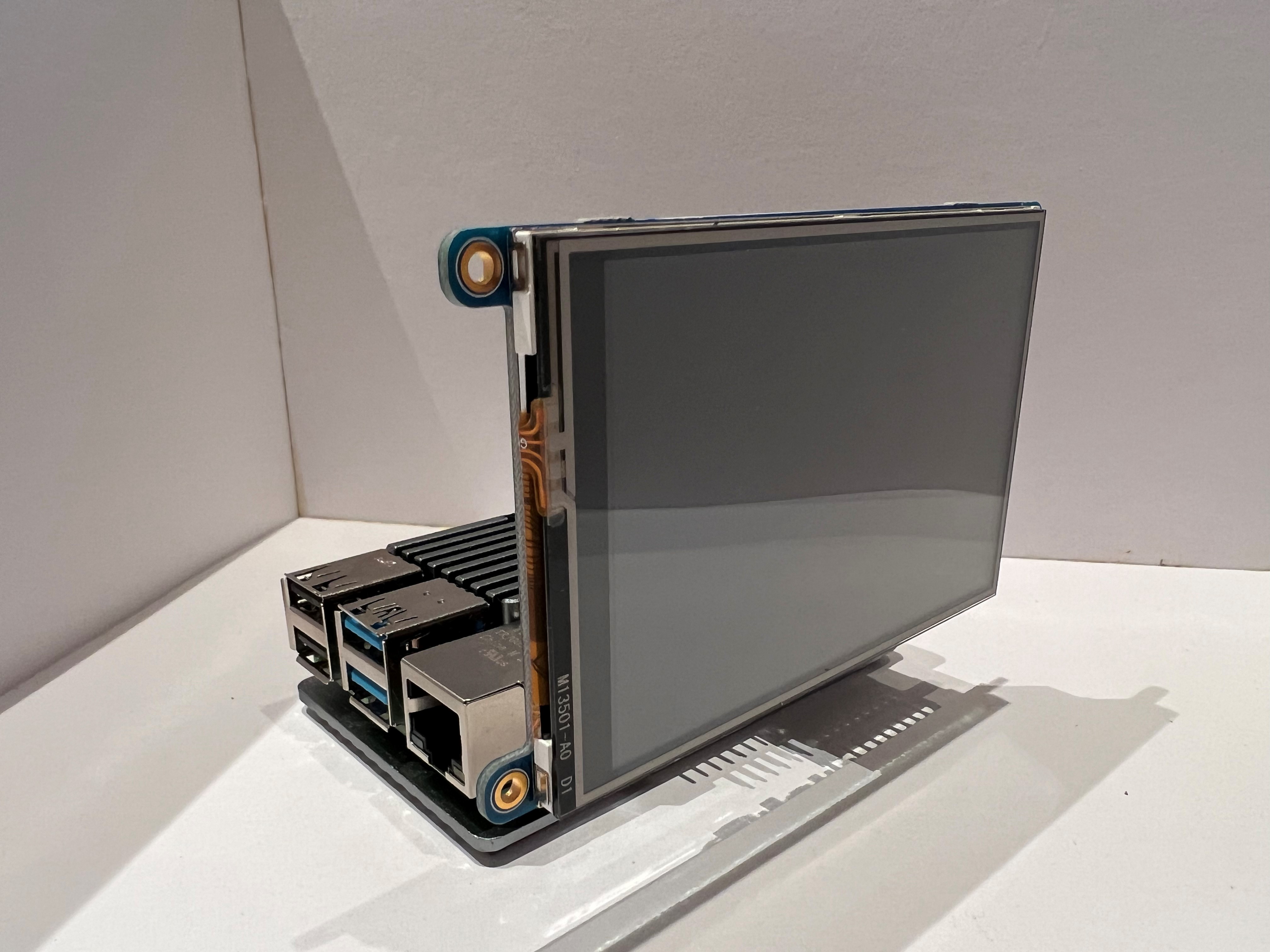

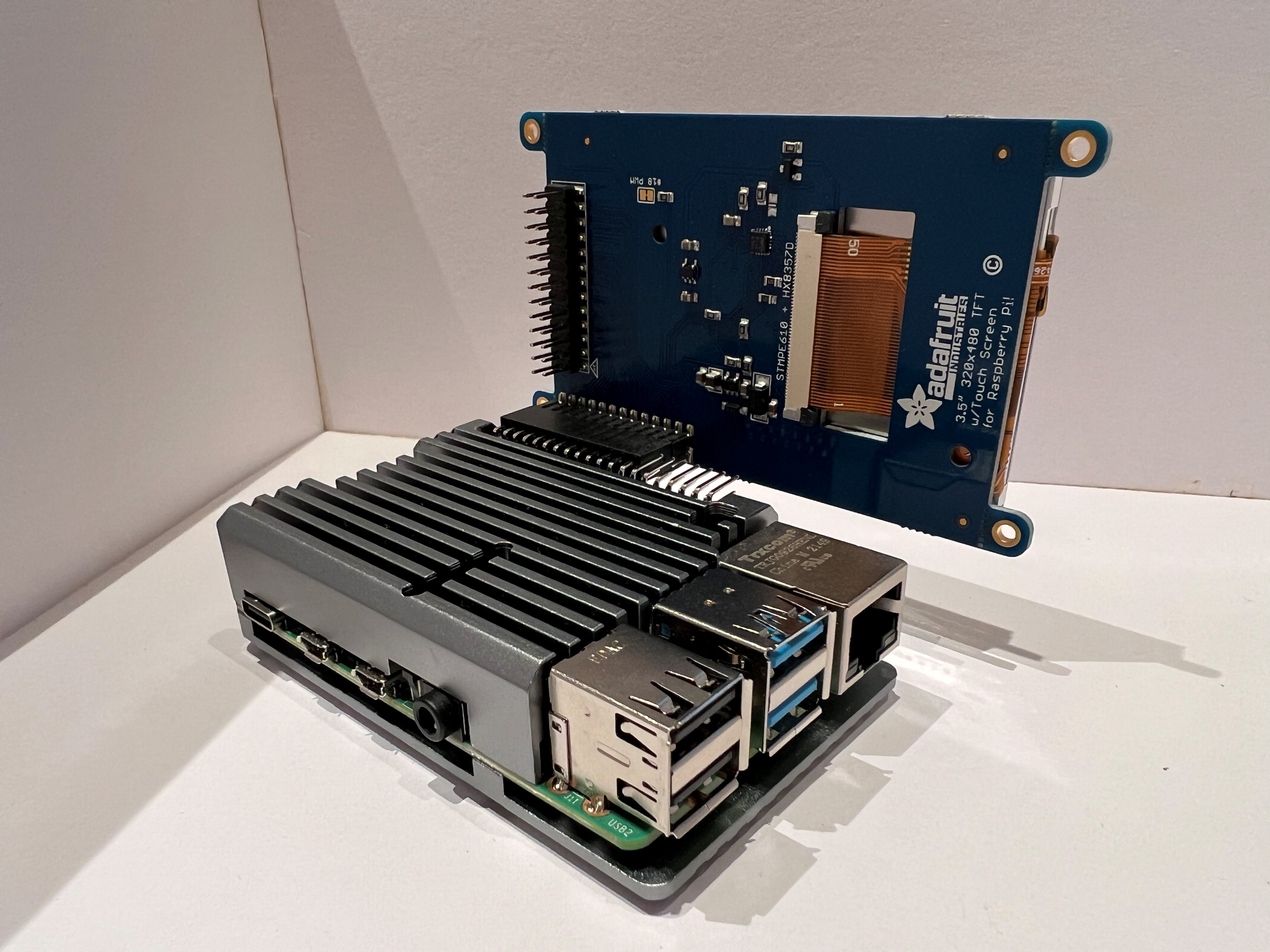

piNET (Front)	piNET (Back)

Hardware

• Raspberry Pi 4
• MicroSD Card
• Case
• Adafruit PiTFT Display
• GPIO Header with a 90° angle

Of course, you can also use a Raspberry Pi 3 or even a Pi Zero with some (minor) disadvantages in performance. Furthermore, the TFT didsplay can alternatively be attached directly onto the Raspberry Pi board without the need of the 90° GPIO header. In that case, however, be aware that there are Pins on the back of the display, which you would need to remove if you plan on using the same case I've linked above.

Setup Process

• Groundwork

1. Install Raspberry Pi OS Lite by using the Raspberry Pi Imager. Since I have a Raspberry Pi 4, I install the 64bit version. With the imager software, you can directly set up your hostname (piNET), your user/password credentials, your SSH access and your timezone/keyboard settings before flashing the OS to the microSD card.

2. Once the Raspberry Pi has booted with the SD card inside, you check for the Pi’s IP address in your router’s web interface. There, you should also directly assign a static DHCP lease for it, so your new device always gets assigned the same IP from your router.
3. You can then access the Pi via SSH (with software like Putty on Windows e.g.) and update/upgrade your system with sudo apt-get update and sudo apt-get upgrade -y. Ultimately, reboot with sudo reboot.

• Install piHole

--> PiHole is an ad/tracker blocker that acts as a DNS sinkhole, not responding to blacklisted domain requests.

1. Log in as root with sudo su. Then start the automatic install script for piHole with curl -sSL https://install.pi-hole.net | bash and go through the installation process.
2. Change the automatically generated password to access the web interface of the piHole with sudo pihole setpassword. After that, reboot.
3. Set up your router to use the piHole's IP as its DNS server. In some cases you also need to restart the router.
4. At this point I like to make my piHole's IP static from the raspberry itself by using Network Manager TUI (sudo nmtui). Open it, go through the menus (Edit a connection --> Wired Connection) and edit the IPv4 CONFIGURATION by switching from automatic to manual with the following values:

Adresses:    <static IP of the Raspberry Pi>
Gateway:     <IP of the router>
DNS servers: <static IP of the Raspberry Pi>

Exit via OK --> Back --> Quit. 6. Access the piHole's web interface within your browser by entering <IP of Raspberry Pi>:<port of your piHole WebUI>/admin and configure the available settings to your liking. There are several guides out there to help with configuring piHole properly. A nice selection of adlists can be found on Hagezi's GitHub. 8. Check if ads are being blocked.

• Install PiTFT display & PADD

--> PADD is used to show the current status of piHole, IPs, CPU/RAM usage etc. on the PiTFT display.

1. First, get the PiTFT ready by installing the python modules in a virtual environment with

sudo apt install python3-venv
python -m venv env --system-site-packages

Then, activate said environment with source env/bin/activate and use the following installer script to correctly configure PiTFT:

cd ~
sudo apt-get update
sudo apt-get install -y git python3-pip
pip3 install --upgrade adafruit-python-shell click Flask-SQLAlchemy
git clone https://github.com/adafruit/Raspberry-Pi-Installer-Scripts.git
cd Raspberry-Pi-Installer-Scripts

2. Execute the initialization of the 3.5" 480x320 display with:

sudo -E env PATH=$PATH python3 adafruit-pitft.py --display=35r --rotation=90 --install-type=console

3. After having rebooted successfully, install PADD with:

cd ~
wget -N https://raw.githubusercontent.com/jpmck/PADD/master/padd.sh

4. Execute sudo chmod +x padd.sh to adjust permissions.
5. Make PADD run automatically on startup by editing bashrc with sudo nano ~/.bashrc and adding the following to the bottom of the file:

# Run PADD
# If we're on the PiTFT screen (ssh is xterm)
if [ "$TERM" == "linux" ] ; then
  while :
  do
    ./padd.sh
    sleep 1
  done
fi

6. Lastly, in order to avoid getting a password prompt upon booting, make your user part of the pihole group by executing sudo usermod -aG pihole <yourusername>
7. Reboot. PADD should now show on startup.

• Install PiVPN

--> PiVPN lets us dial into our home network remotely via WireGuard.

1. Open port 51820 UDP on your router for the Raspberry Pi.
2. Execute the automatic install script for piVPN with curl -L https://install.pivpn.io | bash and go through the installation process for the WireGuard VPN server. Reboot when finished.
3. Add users for the piVPN service with pivpn add. One user for each client you want to use the VPN with.
4. Import the config files for said users either by either

• QR code with pivpn -qr for devices with integrated cameras or
• Config file, which you can retrieve via SCP (with software like WinSCP or FileZilla, for example) from home/<user>/configs on your Raspberry Pi.

8. Connect to your piVPN from an external network and check if your IP changes with help of websites like whatismyipaddress.com.

• Install Uptime Kuma

--> Uptime Kuma enables us to monitor various protocols (TCP, HTTP, PING etc.) and can notify us about changes.

1. First, we will need to install all prerequisites (Git and NodeJS) by executing:

• sudo apt install git,
• curl -fsSL https://deb.nodesource.com/setup_current.x | sudo -E bash -,
• and sudo apt install nodejs.

2. Next, Uptime Kuma and its process manager are going to be installed by executing:

• git clone https://github.com/louislam/uptime-kuma.git,
• cd uptime-kuma && npm run setup,
• sudo npm install -g pm2,
• and pm2 install pm2-logrotate.

3. After that, Uptime Kuma is started and configured to run after bootup with:

• pm2 start server/server.js --name uptime-kuma,
• pm2 save,
• and pm2 startup.
  The last command will give you a command to execute, which will look like sudo env PATH=$PATH..., but might be slightly different for each individual system. Copy the command and execute it.

4. You can now access Uptime Kuma at :3001 via your Browser. Add an account and configure Uptime Kuma to monitor the services you'd like to keep an eye on.

• Install Nginx

--> We will use Nginx as a reverse proxy, so we can enter a domain name in our browser and be redirected to a specific IP on a specific port.

1. Install Nginx by executing sudo apt install nginx. After the installation, verify that Nginx is running with sudo systemctl status nginx.
2. Remove the current default Nginx site with sudo rm /etc/nginx/sites-available/default and create a new one with sudo nano /etc/nginx/sites-available/default. Paste the following content to redirect piHole and Uptime Kuma, edit it to match your network configuration and save the file.

server{
        listen 80;
        server_name pihole.arpa;

        location / {
        proxy_pass http://<IP of your Raspberry Pi>:<piHole WebUI port number>/admin/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_hide_header X-Frame-Options;
        proxy_set_header X-Frame-Options "SAMEORIGIN";
        proxy_read_timeout 90;
        }
        location /admin {
        proxy_pass http://<IP of your Raspberry Pi>:<piHole WebUI port number>/admin/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_hide_header X-Frame-Options;
        proxy_set_header X-Frame-Options "SAMEORIGIN";
        proxy_read_timeout 90;
        }
}

server{
        listen 80;
        server_name uptimekuma.arpa uptime.arpa;

        location / {
        proxy_pass http://<IP of your Raspberry Pi>:3001;
        proxy_http_version 1.1;
        proxy_set_header   Upgrade $http_upgrade;
        proxy_set_header   Connection "upgrade";
        proxy_set_header   Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_hide_header X-Frame-Options;
        proxy_set_header X-Frame-Options "SAMEORIGIN";
        proxy_read_timeout 90;
        }
}

4. Restart Nginx with sudo systemctl restart nginx. Nginx is now running our new reverse proxy configuration.
5. Next, we need to tell piHole (as it is our default DNS server) to redirect domain requests we would like to reverse proxy (in our example pihole.arpa and uptimekuma.arpa) to Nginx, so Nginx can redirect these requests instead. In order to do that, head to piHole's WebUI, go to Local DNS --> DNS Records and add new domain/IP combinations consisting of the domain we want to redirect (pihole.arpa, for example) and the IP of Nginx (which is the same IP as the Raspberry Pi's IP in our case).
6. Type in pihole.arpa or uptimekuma.arpa into your web browser, which should get you to each application's WebUI. You can create additional proxy redirects by adding them to /etc/nginx/sites-available/default and setting a Local DNS for them in piHole as well.

• Set up local PGP Encryption Service

--> Javascript PGP Encryption service enables us to encrypt text via PGP on a locally hosted website.

1. After having installed Nginx sucessfully in the previous step, we will need to transfer the files needed for the PGP web service from my GitHub repo to our Raspberry Pi and move it to Nginx' default folder for websites by executing the following commands:

cd ~
sudo mkdir piNET && cd piNET
sudo wget https://github.com/chriskalv/piNET/archive/refs/heads/main.zip
sudo unzip main.zip
sudo mv ~/piNET/piNET-main/hanewin /var/www/html/ && sudo rm -r ~/piNET

2. Then, add the following lines to Nginx' sites-available config after executing sudo nano /etc/nginx/sites-available/default:

server {
        listen 80;
        listen [::]:80;
        root /var/www/html/hanewin;
        index index.html index.htm;
        server_name pgp.arpa;

   location / {
       try_files $uri $uri/ =404;
   }
}

3. Restart nginx with sudo systemctl restart nginx.
4. Now we can - again - tell piHole to redirect requests for our new desired PGP URL (in my case pgp.arpa), just as we did in the previous Nginx setup for piHole and Uptime Kuma.

• Install Cloudflared (DNS over HTTPS)

--> A more detailed about Cloudflared can be found here.

1. Follow the guide above
2. Check if DNS over HTTPS is active with https://1.1.1.1/help

• Install raspiBackup

--> raspiBackup will create a recurring backup of our miroSD to the Synology NAS on our network.

1. Configure your Synology NAS to allow users access to the NFS protocol. In order to do that, log into DSM, go to Control Panel --> File Services --> NFS and activate Enable NFS service. Choose NFS v3 as the "maximum NFS protocol".
2. Create a new shared folder on your NAS. Right-click it and select Edit. In the NFS Permissions tab, click Create and enter the following:

Hostname or IP: <IP of your Raspberry Pi>
Privilige: Read/Write
Squash: No mapping
Security: sys
[v] Enable asynchronus
[v] Allow connections for non-priviliged ports
[ ] Allow users to access mounted subfolders

3. SSH into your Raspberry Pi and install NFS Common to read from a NFS shared folder by executing sudo apt-get install nfs-common.
4. Create a backup folder with sudo mkdir /backup.
5. Enter sudo nano /etc/fstab and add the following line to the file:

NAS_IP_ADDRESS:/PATH/TO/NAS /PATH/TO/MOUNT/POINT nfs rw,nfsvers=3 0 0

In my specific case, this line is

192.168.2.8:/volume1/backups_LINUX /backup nfs rw,nfsvers=3 0 0

6. Edit permissions accordingly by logging in as root with sudo -i and executing chmod 777 /backup. Then, make the Raspberry Pi's user ("pi" in my case) the owner of the new folder with chown pi:pi /backup and logout of the root user with exit.
7. Install raspiBackup with curl -L https://raspibackup.linux-tips-and-tricks.de/install | sudo bash and configure everything according to your needs in the installer/configuration UI. Be sure to

• select rsync as backup type and
• stop recommended services before the backup process and
• mount your /backup folder with sudo mount /backup.

8. After that, you can initiate a first backup with sudo raspiBackup.sh -m detailed. You can always access the installer/configuration UI again with sudo raspiBackupInstallUI.

• Create custom recurring processes

--> We will use crontab to establish routines for application updates, config backups, reboots, and power saving.

1. Open crontab with sudo crontab -e. Select nano to edit the file, if asked.
2. Add the following lines to the file (you can get some help with crontab time syntax with crontab.guru).

# CONFIG BACKUPS
# Back up piHole config at 04:15h every first day of the month:
15 4 1 * * pihole -a -t
# Back up piVPN config at 04:30h every first day of the month:
30 4 1 * * pivpn -bk

# APPLICATION UPDATES
# Update piHole and change the standard port 80 of the WebUI back to custom port 8017 at 04:15h every second day of the month:
15 4 2 * * pihole -up && sudo sed -ie 's/= 80 /= 8017/g' /etc/lighttpd/lighttpd.conf
# Update PADD at 04:30 every second day of the month:
30 4 2 * * cd ~ && sudo rm padd.sh && wget -N https://raw.githubusercontent.com/pi-hole/PADD/master/padd.sh && sudo chmod +x padd.sh

# REBOOTS
# Reboot Raspberry Pi at 01:00h every third day of the month
0 1 3 * * /sbin/shutdown -r now

# POWER SAVERS
# Turn off PiTFT screen every day at 03:00h:
0 3 * * * sh -c 'echo "0" > /sys/class/backlight/soc\:backlight/brightness'
# Turn on PiTFT screen every day at 06:00h:
0 6 * * * sh -c 'echo "1" > /sys/class/backlight/soc\:backlight/brightness'

Congratulations! Your piNET device should now be all set up and ready!
